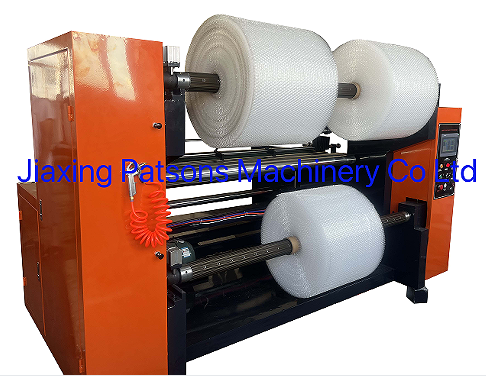

A bubble wrap slitting machine is used to cut wide rolls of bubble wrap into narrower rolls according to a set size.
This machine is mainly suitable for slitting materials such as bubble wrap and pearl cotton. It features automatic deviation correction and automatic meter counting functions, allowing for real-time adjustment of material position to ensure neat bubble wrap rewinding.
The machine uses a manual mechanical shaft for feeding and an air-expansion shaft for rewinding. Winding tension is controlled by magnetic powder, and unwinding is achieved with a mechanical brake. The machine is simple to operate and runs stably and reliably.
Machine uses carbide blades for slitting, resulting in a long service life and smooth cuts.

Main Data:
Model: PPD-BWSM1000
Jumbo Roll Width: Max 1000mm
Unwind Diameter: Max 800mm
Product Roll ID : 3inch
Product Roll OD : Max 600mm
Slitting Width: 100mm-1000mm
Slitting Thickness: 0.5-5mm
Slitting Speed: 80m/min
Slitting Accuracy: ±0.5mm
Main Motor: 4KW
Voltage: 380V 3ph 50Hz
